Tubular modular permanent-magnet machines equipped with quasi-Halbach magnetized magnets - Part II: Armature reaction and design optimization

Wang, J.B. and Howe, D. (2005) Tubular modular permanent-magnet machines equipped with quasi-Halbach magnetized magnets - Part II: Armature reaction and design optimization. IEEE Transactions on Magnetics, 41 (9). pp. 2479-2489. ISSN 0018-9464

Full text available as:

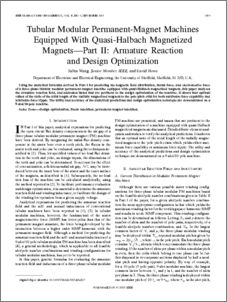

[img]
Preview
Text
wangjb4.pdf

Download (1252Kb)

Abstract

Using the analytical formulas derived in Part I for predicting the magnetic field distribution, thrust force, and electromotive force of a three-phase tubular modular permanent-magnet machine equipped with quasi-Halbach magnetized magnets, this paper analyzes the armature reaction field, and addresses issues that are pertinent to the design optimization of the machine. It shows that optimal values of the ratio of the axial length of the radially magnetized magnets to the pole pitch exist for both maximum force capability and minimum force ripple. The utility and accuracy of the analytical predictions and design optimization technique are demonstrated on a 9-slot/10-pole machine.

Item Type: Article
Copyright, Publisher and Additional Information: Copyright © 2005 IEEE. Personal use of this material is permitted. However, permission to reprint/republish this material for advertising or promotional purposes or for creating new collective works for resale or redistribution to servers or lists, or to reuse any copyrighted component of this work in other works must be obtained from the IEEE.
Keywords: design optimization, linear machines, permanent-magnet machines
Academic Units: The University of Sheffield > Faculty of Engineering (Sheffield) > Department of Electronic and Electrical Engineering (Sheffield)
Depositing User: Sherpa Assistant
Date Deposited: 12 Dec 2005
Last Modified: 08 Feb 2013 16:48
Published Version: http://dx.doi.org/10.1109/TMAG.2005.854327
Status: Published
Refereed: Yes
Identification Number: 10.1109/TMAG.2005.854327
URI: http://eprints.whiterose.ac.uk/id/eprint/822
