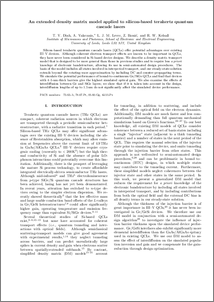

An extended density matrix model applied to silicon-based terahertz quantum cascade lasers

Silicon-based terahertz quantum cascade lasers (QCLs) offer potential advantages over existing III–V devices. Although coherent electron transport effects are known to be important in QCLs, they have never been considered in Si-based device designs. We describe a density matrix transport model that is designed to be more general than those in previous studies and to require less a priori knowledge of electronic bandstructure, allowing its use in semi-automated design procedures. The basis of the model includes all states involved in interperiod transport, and our steady-state solution extends beyond the rotating-wave approximation by including DC and counter-propagating terms. We simulate the potential performance of bound-to-continuum Ge/SiGe QCLs and find that devices with 4–5-nm-thick barriers give the highest simulated optical gain. We also examine the effects of interdiffusion between Ge and SiGe layers; we show that if it is taken into account in the design, interdiffusion lengths of up to 1.5 nm do not significantly affect the simulated device performance.
