Process controls on the development of stratigraphic trap potential on the margins of confined turbidite systems and aids to reservoir evaluation

McCaffrey, W.D. and Kneller, B.C. (2001) Process controls on the development of stratigraphic trap potential on the margins of confined turbidite systems and aids to reservoir evaluation. AAPG Bulletin, 85 (6). pp. 971-988. ISSN 0149-1423

Available under licence : See the attached licence file.

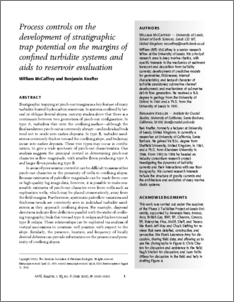

Download (3002Kb)


Stratigraphic trapping at pinch-out margins is a key feature of many turbidite-hosted hydrocarbon reservoirs. In systems confined by lateral or oblique frontal slopes, outcrop studies show that there is a continuum between two geometries of pinch-out configuration. In type A, turbidites thin onto the confining surface—although the final sandstone pinch-out is commonly abrupt—and individual beds tend not to erode into earlier deposits. In type B, turbidite sandstones commonly thicken toward the confining slope, and beds may incise into earlier deposits. These two types may occur in combination, to give a wide spectrum of pinch-out characteristics. Our analysis suggests the principal control in determining pinch-out character is flow magnitude, with smaller flows producing type A and larger flows producing type B. In areas of poor seismic control it can be difficult to assess either pinch-out character or the proximity of wells to confining slopes. Because estimates of paleoflow magnitude can be made from core or high-quality log image data, however, it is possible to make reasonable estimates of pinch-out character even from wells such as exploration wells, which may be placed conservatively, away from the field margins. Furthermore, systematic paleoflow variations and thickness trends are commonly seen in individual turbidite sandstones as they approach confining slopes. For example, dispersal directions indicate flow deflection parallel with the strike of confining topography; beds thin toward type A onlaps and thicken toward type Bonlaps. These relationships can be exploited via analysis of vertical successions to constrain well position with respect to the slope. Similarly, the presence, location, and frequency of locally derived debrites can provide information on the presence and proximity of confining slopes.

Item Type: Article
Copyright, Publisher and Additional Information: Copyright © 2001 The American Association of Petroleum Geologists
Institution: The University of Leeds
Academic Units: The University of Leeds > Faculty of Environment (Leeds) > School of Earth and Environment (Leeds)
Depositing User: Repository Officer
Date Deposited: 31 Mar 2005
Last Modified: 04 Jun 2014 22:16
Status: Published
Refereed: Yes
URI: http://eprints.whiterose.ac.uk/id/eprint/363
