The BIOMASS mission: mapping global forest biomass to better understand the terrestrial carbon cycle

Le Toan, T., Quegan, S., Davidson, M.W.J., Balzter, H., Paillou, P., Papathanassiou, K., Plummer, S., Rocca, F., Saatchi, S., Shugart, H. and Ulander, L. (2011) The BIOMASS mission: mapping global forest biomass to better understand the terrestrial carbon cycle. Remote Sensing of Environment, 115 (11). pp. 2850-2860. ISSN 0034-4257

Full text available as:
[img]
Preview
Text

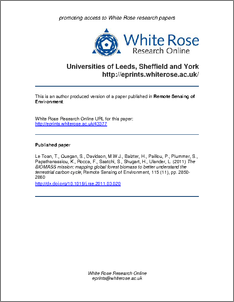

WRRO_43377.pdf

Download (2467Kb)

Abstract

In response to the urgent need for improved mapping of global biomass and the lack of any current space systems capable of addressing this need, the BIOMASS mission was proposed to the European Space Agency for the third cycle of Earth Explorer Core missions and was selected for Feasibility Study (Phase A) in March 2009. The objectives of the mission are 1) to quantify the magnitude and distribution of forest biomass globally to improve resource assessment, carbon accounting and carbon models, and 2) to monitor and quantify changes in terrestrial forest biomass globally, on an annual basis or better, leading to improved estimates of terrestrial carbon sources (primarily from deforestation); and terrestrial carbon sinks due to forest regrowth and afforestation. These science objectives require the mission to measure above-ground forest biomass from 70 degrees N to 56 degrees Sat spatial scale of 100-200 m, with error not exceeding +/- 20% or +/- 10 t ha(-1) and forest height with error of +/- 4 m. To meet the measurement requirements, the mission will carry a P-Band polarimetric SAR (centre frequency 435 MHz with 6 MHz bandwidth) with interferometric capability, operating in a dawn-dusk orbit with a constant incidence angle (in the range of 25 degrees-35 degrees) and a 25-45 day repeat cycle. During its 5-year lifetime, the mission will be capable of providing both direct measurements of biomass derived from intensity data and measurements of forest height derived from polarimetric interferometry. The design of the BIOMASS mission spins together two main observational strands: (1) the long heritage of airborne observations in tropical, temperate and boreal forest that have demonstrated the capabilities of P-band SAR for measuring forest biomass; (2) new developments in recovery of forest structure including forest height from Pol-InSAR, and, crucially, the resistance of P-band to temporal decorrelation, which makes this frequency uniquely suitable for biomass measurements with a single repeat-pass satellite. These two complementary measurement approaches are combined in the single BIOMASS sensor, and have the satisfying property that increasing biomass reduces the sensitivity of the former approach while increasing the sensitivity of the latter. This paper surveys the body of evidence built up over the last decade, from a wide range of airborne experiments, which illustrates the ability of such a sensor to provide the required measurements.

At present, the BIOMASS P-band radar appears to be the only sensor capable of providing the necessary global knowledge about the world's forest biomass and its changes. In addition, this first chance to explore the Earth's environment with a long wavelength satellite SAR is expected to make yield new information in a range of geoscience areas, including subsurface structure in arid lands and polar ice, and forest inundation dynamics. (C) 2011 Elsevier Inc. All rights reserved.

Item Type: Article
Copyright, Publisher and Additional Information: © 2011 Elsevier. This is an author produced version of a paper subsequently published in Remote Sensing of Environment. Uploaded in accordance with the publisher's self-archiving policy.
Keywords: Forest biomass; Carbon cycle; P-band SAR; Satellite mission; ESA Earth Explorer
Academic Units: The University of Sheffield > University of Sheffield Research Centres and Institutes > Centre for Terrestrial Carbon Dynamics (Sheffield)
Depositing User: Miss Anthea Tucker
Date Deposited: 07 Nov 2011 14:37
Last Modified: 08 Feb 2013 17:35
Published Version: http://dx.doi.org/10.1016/j.rse.2011.03.020
Status: Published
Publisher: Elsevier
Refereed: Yes
Identification Number: 10.1016/j.rse.2011.03.020
URI: http://eprints.whiterose.ac.uk/id/eprint/43377
